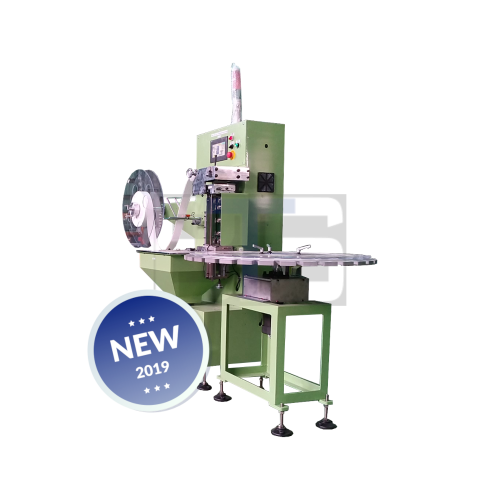

Semiauto. AGM separator enveloping machine (VGM-20M)

  • Motorcycle battery semiauto. AGM separator enveloping machine
Inquiry Prev Next
Product description
Functions
Automatically wraps positive and negative motorcycle battery plates.

Machine operation
Once the plates have been wrapped, the machine will cut the AGM separator automatically, inserting the negative plates into the lower layer of the round disc. The operator will then collect the wrapped positive and negative plates and stack them manually.
Product features
  • HMI and touchscreen control panel.
  • Auto-stop and auto-start system.
  • Capacity:
    • 2880-3600 pcs/h (positive).
    • 3000-3600 pcs/h (negative).
Product specification
  Product specification
Power consumption 1.5 KW
Air consumption 10.37 Nl/min (6 kg/cm2)
Dimensions approx. 2650 (W) × 1000 (D) × 1700 (H) mm
Weight approx. 650 kg

Find other related equipment on our dedicated battery plate manufacturing page. You may also be interested in our motorcycle battery COS and assembly line solutions.
