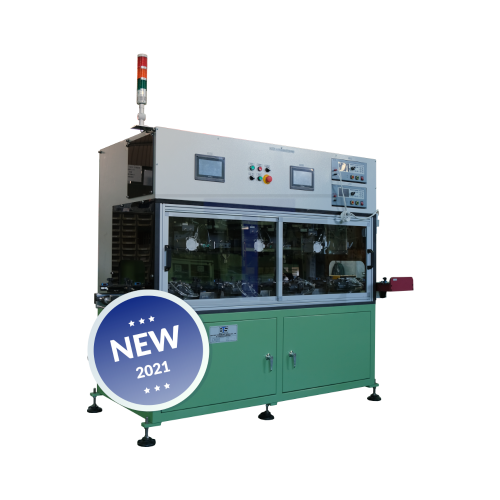

Auto. motorcycle battery shear test machine (SRT-20AMX)

  • Auto. motorcycle battery shear test machine
Inquiry Prev Next
Product description
Functions
Specially designed for welding condition inspection.

Machine operation
After inter-cell welding, batteries are conveyed to this machine and automatically positioned. The shear test heads are capable of detecting any cold weld issues; once the test is finished, they retract automatically. If poor welding is detected, the machine triggers the alarm and automatically rejects the affected batteries, while qualified batteries can continue to the next process.
Product features
  • Compatible with all types of conventional and MF motorcycle batteries.
  • Touchscreen HMI.
  • Quick tooling changeover.
  • Testing and linear values can be adjusted.
  • Torque force values can be set.
  • Auto-stop and auto-start system.
  • Rejection station for unqualified batteries.
  • Capacity: 180-220 pcs/h.
Product specification
  Product specification
Power consumption 0.6 KW
Air consumption 55 L/min (6 kg/cm2)
Dimensions approx. 1750 (W) × 1030 (D) × 1920 (H) mm
Weight approx. 800 kg

You may also want to check out our car and motorcycle battery assembly lines.
